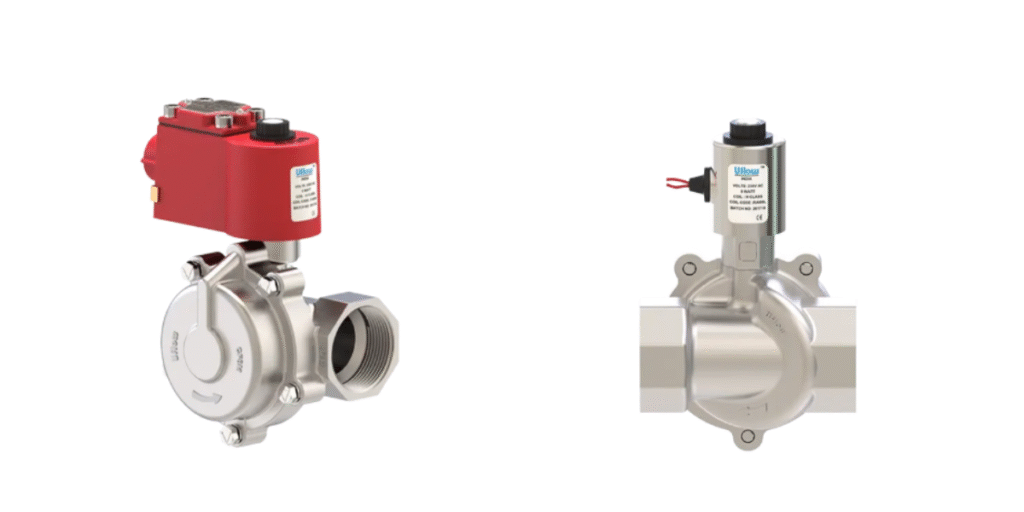

Pilot Operated Piston Type Steam Valve
Introduction
Established in 2005, Ammar Industrial Corporation is an authorised supplier, wholesaler, dealer, stockist, distributor, and retailer of precision-engineered pneumatic-hydraulic-instrumentation-automation products and industrial process equipment based in Kolkata. Our range includes Air Preparation Unit, Pneumatic Solenoid Valve, Pneumatic Cylinder Actuator, hydraulic tools, fluid automation solenoid valves, etc. Our quality norms enable us to maintain and enhance our position in today’s competitive market. Ammar Industrial Corporation’s premium quality products are recognised as the most reliable. Moreover, we follow a quality policy to monitor these products before delivering them to customers.
Many industrial activities, including the production of electricity, petrochemicals, food processing, and pharmaceuticals, rely heavily on steam systems. The Pilot Operated Piston Type Steam Valve, a dependable, high-performance valve made for precise control and heavy-duty applications, is the foundation of an effective steam system. Ammar Industrial Corporation, one of the leading providers of industrial valves in India, provides a variety of superior steam valves, including high-end pilot-operated piston models that offer outstanding durability and performance. We are the best Pilot Operated Piston Type Steam Valve Supplier.
What Is a Pilot Operated Piston Type Steam Valve
A pilot-operated piston-type steam valve is a type of control valve that controls the flow of steam through the system by using pilot pressure to drive a sizable piston mechanism. Pilot-operated valves are perfect for high-pressure steam applications because, in contrast to traditional direct-acting valves, they use system pressure to generate high flow rates with less actuator force. These valves are frequently employed in situations where steam demand varies quickly or where strict control is required to safeguard machinery and preserve process effectiveness. We are the best Pilot Operated Piston Type Steam Valve Provider.
Why Choose Ammar Industrial Corporation
1. Superior Quality Manufacturing
- At Ammar Industrial Corporation, we use premium-grade raw materials and advanced machining processes to manufacture valves that meet international standards. Each product is designed to withstand extreme pressure and temperature conditions without compromising performance.
2. Industry Expertise
- With years of experience in industrial valve manufacturing, our technical team understands the real-world challenges faced by steam system operators. This expertise allows us to design valves that are not only efficient but also practical and reliable.
3. Strict Quality Control
- Every Pilot Operated Piston Type Steam Valve undergoes rigorous inspection and testing before dispatch. We follow strict quality assurance protocols to ensure leak-proof operation, dimensional accuracy, and smooth functioning.
4. Customised Solutions
- We understand that every industry has unique requirements. Ammar Industrial Corporation offers customised valve solutions based on pressure rating, size, material, and application needs, ensuring the perfect fit for your system.
5. Competitive Pricing
- Despite offering premium quality products, we maintain cost-effective pricing without compromising standards. Our transparent pricing structure makes us a preferred choice for both small-scale and large-scale industrial buyers.
6. Timely Delivery & Reliable Support
- We value your time. Our efficient supply chain ensures on-time delivery, while our after-sales support team is always ready to assist with installation guidance and technical queries.
7. Trusted by Multiple Industries
- Our Pilot Operated Piston Type Steam Valves are trusted by clients across various industrial sectors due to their consistent performance, durability, and safety standards.
8. Global Experience
- With decades of experience in supplying steam valves worldwide, Ammar Industrial Corporation has earned a reputation for reliability. Our products are trusted in industries across multiple continents.
Applications of Pilot Operated Piston Type Steam Valves
1. Power Generation Plants
- In power plants, these valves are used to control the steam supplied to turbines. The precise regulation provided by pilot-operated piston valves ensures optimal turbine efficiency, reducing fuel consumption and maintaining consistent electricity output.
2. Chemical Processing
- Chemical plants often require steam for heating, sterilisation, and reaction processes. These valves help in maintaining accurate temperature and pressure levels, which are critical for product quality and safety.
3. Food and Beverage Industry
- In food processing, pilot-operated piston valves regulate steam used in cooking, sterilisation, and pasteurisation processes. They ensure uniform heating and comply with strict hygiene standards.
4. Pharmaceutical Industry
- The pharmaceutical sector relies on precise steam control for the sterilisation of equipment and controlled reaction processes. Ammar Industrial Corporation’s valves offer the reliability required for such sensitive applications.
5. Textile Industry
- Textile manufacturing uses steam for dyeing, drying, and finishing processes. These valves help in maintaining consistent temperature and pressure, ensuring uniform quality of textile products.
6. Pulp and Paper Industry
- In pulp and paper production, pilot-operated piston valves manage steam for drying paper, heating digesters, and processing chemicals. This ensures energy-efficient operations and improved product consistency.
7. Marine and Shipbuilding
- Marine boilers and steam systems on ships require robust and reliable valves to control high-pressure steam. Pilot-operated piston valves provide safe and efficient operation even in harsh marine environments.
Table of Specifications Pilot Operated Piston Type Steam Valve
| Specification | Details |
|---|---|
| Valve Type | Pilot Operated Piston Type |
| Material | Stainless Steel / Carbon Steel |
| Pressure Rating | 10 bar – 100 bar (Customizable) |
| Temperature Range | 0°C – 450°C |
| Connection Type | Flanged / Threaded |
| Operation | Pneumatic / Electric / Manual |
| Flow Coefficient (Cv) | 10 – 500 (Dependent on size) |
| End Connections | ANSI / DIN / JIS standards |
| Seat Type | Metal / Soft seat |
| Application | Steam, Gas, Liquid |
| Certification | ISO 9001, CE (Optional) |
| Response Time | 1 second |
Benefits of Pilot Operated Piston Type Steam Valves
1. Enhanced Efficiency in Steam Systems
- The pilot-operated mechanism ensures that the main piston moves smoothly without friction or resistance. This reduces energy consumption by lowering the actuation force required. Efficient steam flow control directly impacts overall plant efficiency, leading to cost savings on energy bills and optimised production cycles.
2. Reliable Operation under High Pressure
- Industries often deal with extreme steam pressures. Traditional valves can face issues like sticking, erosion, or leakage under such conditions. Pilot-operated piston valves are designed to handle these pressures with ease, ensuring uninterrupted operation and minimising downtime.
3. Precise Flow Regulation
- In processes where steam flow directly impacts product quality—such as chemical reactions, food processing, and textile production—accuracy is critical. The pilot system allows fine adjustments to steam flow, providing precise control over temperature and pressure in the process.
4. Extended Lifespan and Reduced Maintenance
- High-quality construction materials and the reduced mechanical stress on the main piston increase the valve’s lifespan. Regular maintenance is simplified, and unexpected breakdowns are minimised, saving time and reducing operational costs.
5. Safety and Operational Stability
- By ensuring smooth and controlled steam flow, these valves reduce the risk of pressure surges or sudden system shocks. This stability protects equipment, minimises hazards, and enhances workplace safety—a top priority for industries handling high-pressure steam.
6. Versatility Across Industrial Applications
- From power generation to pharmaceuticals, the Pilot Operated Piston Type Steam Valve is adaptable across a variety of industrial sectors. Its ability to manage both high-pressure and high-temperature steam makes it an indispensable component in complex processes.
7. Energy Savings and Eco-Friendly Operation
- With lower actuation energy requirements and reduced steam wastage, these valves contribute to more sustainable operations. Industries increasingly focus on eco-friendly practices, and investing in efficient steam valves aligns with this goal.
Types of Pilot Operated Piston Type Steam Valves
1. Direct-Acting Pilot Operated Piston Valve
- This type uses a direct pilot mechanism where the pilot valve directly controls the main piston. Ideal for applications requiring immediate response and precise flow control, these valves are compact and suitable for smaller pipelines.
2. Indirect-Acting Pilot Operated Piston Valve
- In indirect types, the pilot valve controls a separate actuator that then operates the main piston. This configuration is preferred for large-diameter pipelines and high-pressure systems, offering stable operation under extreme conditions.
3. Normally Closed Pilot Operated Steam Valve
- These valves remain closed when the pilot is inactive. Steam flow occurs only when the pilot receives a control signal, making them suitable for emergency shutoff and controlled start-up sequences.
4. Normally Open Pilot Operated Steam Valve
- Conversely, normally open valves allow steam flow by default and close only when the pilot is activated. They are often used in cooling systems or processes requiring a continuous steam supply with controlled stoppage.
5. Modulating Pilot Operated Piston Valve
- These valves are designed for applications that require variable steam flow rather than simple on/off control. They provide fine control over pressure and flow, making them ideal for process industries where precision is critical.
Conclusion
In today’s industrial landscape, controlling high-pressure steam with precision and reliability is non-negotiable. Pilot-operated piston-type steam Valves offer the perfect solution, combining durability, accuracy, and efficiency. Ammar Industrial Corporation stands out as a trusted provider, offering high-quality valves that meet diverse industrial needs. We are the best Pilot Operated Piston Type Steam Valve Dealer.
These valves guarantee the best possible performance and safety in the food & beverage, chemical processing, and power generating industries. Businesses can obtain high-quality, dependable, and adaptable steam valves supported by technical know-how and worldwide assistance by selecting Ammar Industrial Corporation.
