Guide Cylinder Dealer in Kolkata
Introduction
Established in 2005, Ammar Industrial Corporation is an authorized supplier, wholesaler, dealer, stockist, distributor, and retailer of precision-engineered pneumatic-hydraulic-instrumentation-automation products and industrial process equipment based in Kolkata. Our range includes Air Preparation Unit, Pneumatic Solenoid Valve, Pneumatic Cylinder Actuator, hydraulic tools, fluid automation solenoid valves, etc. Our quality norms enable us to maintain and enhance our position in today’s competitive market. Ammar Industrial Corporation’s premium quality products are recognized as the most reliable firm. Moreover, we follow a quality policy to monitor these products before delivering them to customers.
With its rich industrial past, Kolkata has long been a center for engineering and manufacturing. The city’s industrial landscape, which includes busy factories and complex machinery, greatly depends on accuracy and productivity. The guiding cylinder is a seemingly insignificant but extremely important part of this complex automation dance.It can be difficult to sort through the many possibilities if you’re looking for these crucial motion control devices in Kolkata. This thorough guide will explain what guide cylinders are, their importance, and above all how to pick a trustworthy dealer in Kolkata. As we explore this further, we will be pleased to present the reasons why Ammar Industrial Corporation is a reliable partner. We are the best Guide Cylinder Supplier.

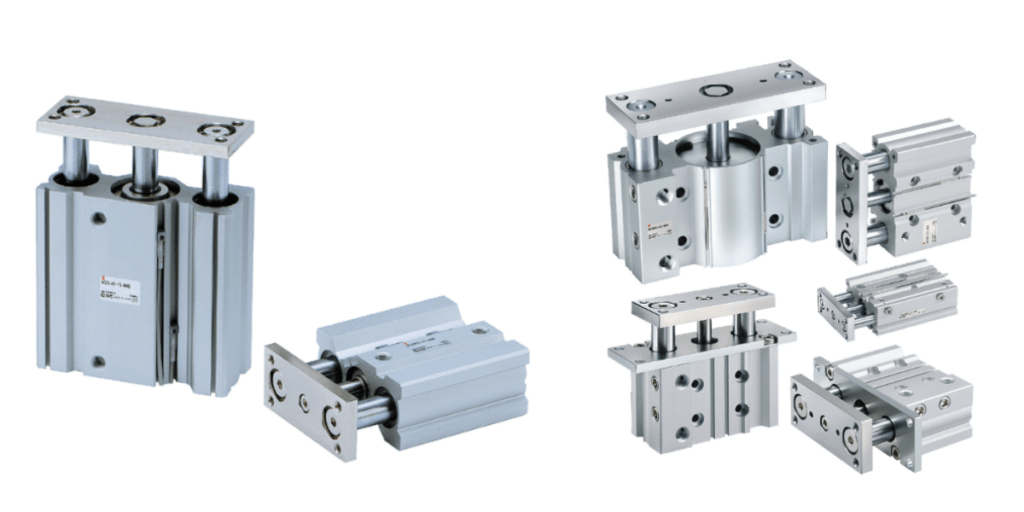

What Exactly is Guide Cylinder
To put it simply, a guide cylinder is a kind of hydraulic (driven by liquid) or pneumatic (powered by air) cylinder that guides in addition to pushing or pulling. A guide cylinder has extra guide rods or bearings, in contrast to a conventional cylinder where the piston rod may have a little inclination to rotate or wobble under specific stresses. We are the best Guide Cylinder Provider.
By running parallel to the main piston rod, these guides guarantee a strictly linear, stable, and very accurate movement.Consider a guiding cylinder as a train that travels on several precisely matched tracks, whereas a regular cylinder is a train with a single rail. In applications where even a small deviation might result in mistakes, inefficiency, or even damage, this extra stability is crucial.
Why Choose Ammar Industrial Corporation
- Wide Selection of High-Quality Products: We are approved distributors, dealers, wholesalers, and stockists of precisely designed guide cylinders. Compact guide cylinders, ones with built-in air cushions, and many more are among the varieties in our inventory that are made to satisfy a range of industrial needs. We provide items that have undergone extensive testing on a range of quality characteristics and are aesthetically designed for optimal performance and durability.
- Unwavering Commitment to Quality: At Ammar Industrial Corporation, quality is the cornerstone of our business operations and not just a catchphrase. We make sure every guide cylinder satisfies strict industry standards and get items from reliable manufacturers. Our emphasis on high-end goods has allowed us to hold onto and improve our position in the cutthroat market of today.
- Technical Expertise and Advice: Our team is made up of committed people who have extensive knowledge of hydraulic and pneumatic systems. In addition to selling goods, we also offer professional advice to assist you choose the best guide cylinder for your particular need, guaranteeing maximum effectiveness and performance.
- Customer-Centric Approach: Establishing enduring bonds with our clients is our top priority. Your satisfaction is our first focus, from comprehending your unique needs to offering prompt delivery and thorough after-sales assistance. We welcome requests from clients for modifications to satisfy specific project requirements.
- Fast and Effective Service: With our handy Kolkata location, we guarantee dependable and effective product distribution throughout India as well as within the city. Our effective logistics procedures are developed to guarantee on-time delivery and reduce any possible interference with your business activities.
- Complete Industrial Solutions: Ammar Industrial Corporation provides a wide range of industrial products, such as air preparation units, hydraulic tools, fittings, couplings, hoses, and pneumatic solenoid valves, in addition to guide cylinders. As a result, we can handle many of your needs for process equipment and industrial automation all at once.
- Proven Track Record: Having been founded in we have years of expertise working with a variety of industries, such as chemical, power, marine, oil and gas, biogas, and automotive. Our extensive clientele attests to our dependability and dedication.
Applications of Guide Cylinders
1. Material Handling Systems
- In automated production lines, guide cylinders are used to move, push, or lift components. Their robust structure and non-rotating design help in accurately positioning parts during transfer.
2. Packaging Machinery
- In the packaging industry, guide cylinders help in actions like sealing, folding, pressing, and cutting. Their reliability ensures quick and smooth operation without machine breakdowns.
3. Assembly Lines
- For assembling parts such as in the automotive or electronics industries, guide cylinders ensure components are placed with precise alignment and pressure.
4. Pick and Place Units
- Robotic and semi-automated systems use guide cylinders to pick objects from one position and place them at another, with high speed and accuracy.
5. Clamping and Pressing Applications
- Guide cylinders are suitable for tasks like clamping, where heavy force and stability are needed without damaging the object.
6. Testing Equipment
- In labs or quality control environments, guide cylinders are used for actuation during testing, such as pressure, force, or vibration tests.
7. Conveying Systems
- Guide cylinders are used to divert, stop, or guide objects on conveyor belts with precision.
Table of Specifications Guide Cylinders
| Feature | Specification |
|---|---|
| Product | Guide Cylinders |
| Stroke Length | 10mm to 500mm (customizable) |
| Guide Type | Slide bearing / Ball bushing / Twin rod |
| Operating Pressure | 0.15 to 1.0 MPa |
| Max Operating Speed | Up to 800 mm/sec |
| Temperature Range | -10°C to 60°C (standard) |
| Mounting Styles | Foot, Flange, Side, or Custom Mounting Brackets |
| Material | Aluminum alloy body with hard chrome-plated rod |
| Cushion Type | Rubber bumper / Adjustable air cushion |
| Non-Rotating Accuracy | ±0.2 mm or better (depending on model) |
Advantages of Guide Cylinder
- Perhaps the most important benefit is high precision and repeatability. The piston rod moves in a perfectly straight line thanks to the integrated guide rods, which prevent rotation and deflection. For jobs that need precise placement, like complex assembly, accurate drilling, or reliable material handling, this is essential. When a robotic arm picks up a sensitive part, a guiding cylinder makes sure it always lands in the exact same area.
- Outstanding Resistance to Side Loads: Normal cylinders aren’t made to withstand heavy loads on their sides. Guide cylinders are capable of withstanding significant side loads and bending moments due to their sturdy guide rods. Because of this, they are perfect for applications with unequal loads, impact hazards, or lateral pressure.
- Space-Saving Integrated Design: Guide cylinders provide a more compact option than assembling a separate cylinder and external linear guide system because they combine the actuator and guiding mechanism into a single element. This results in more streamlined and effective equipment by simplifying assembly and saving important space in machine design.
- Improved Anti-Rotation and Stability: The guide rods’ built-in stability stops the piston rod from spinning on its axis. This is essential for applications like screwdriving, part orientation, and clamping where the end-effectors the tool or gripper coupled to the cylinder alignment needs to be maintained.
- Durability and Extended Lifespan: Compared to their unguided counterparts, guide cylinders typically have a longer operational lifespan and require less frequent maintenance, especially in demanding applications, because of improved load distribution and decreased wear on internal components brought on by the guiding mechanism. Lower operating expenses and less downtime result from this.
- Decreased Wear and Tear: Seals and other internal parts experience less wear as a result of the integrated guides’ reduction of friction and stress on the main piston rod. This enhances the cylinder’s overall durability and dependability.
Types of Guide Cylinders
1. Twin Rod Guide Cylinders
- These cylinders come with two parallel rods that provide strong resistance to torsional forces. Twin rod guide cylinders are ideal for applications requiring high precision and rigidity.
Applications: Printing, packaging, and inspection machines.
2. Slide Table Guide Cylinders
- Slide table cylinders use linear guides that are integrated into the cylinder structure, allowing for smooth and stable motion with minimal friction. They are compact, lightweight, and perfect for precise movements.
Applications: Semiconductor assembly, electronic parts handling.
3. Rodless Guide Cylinders
- Rodless cylinders use a slider that moves along a guide rail. They are excellent for space-saving designs where long strokes are needed but space is limited.
Applications: Conveyor systems, material transfer units.
4. Heavy-Duty Guide Cylinders
- These cylinders are designed for high-load applications and harsh environments. They come with reinforced rods and durable sealing to withstand wear and tear.
Applications: Heavy machinery, automotive assembly.
5. Mini Guide Cylinders
- As the name suggests, these are compact and suitable for smaller machines or systems with space constraints.
Applications: Medical equipment, lab automation.
Conclusion
In the realm of industrial automation, guide cylinders are unsung heroes because they offer the accuracy, stability, and dependability required by contemporary manufacturing. A crucial choice that affects both your operational effectiveness and financial results is selecting the best guide cylinder dealer in Kolkata.
Being more than just a supplier is something we at Ammar Industrial Corporation take great pride in. We are a dependable partner that provides businesses in Kolkata with the professional guidance, dependable assistance, and affordable prices they deserve in addition to a large selection of premium guide cylinders and other industrial solutions.
